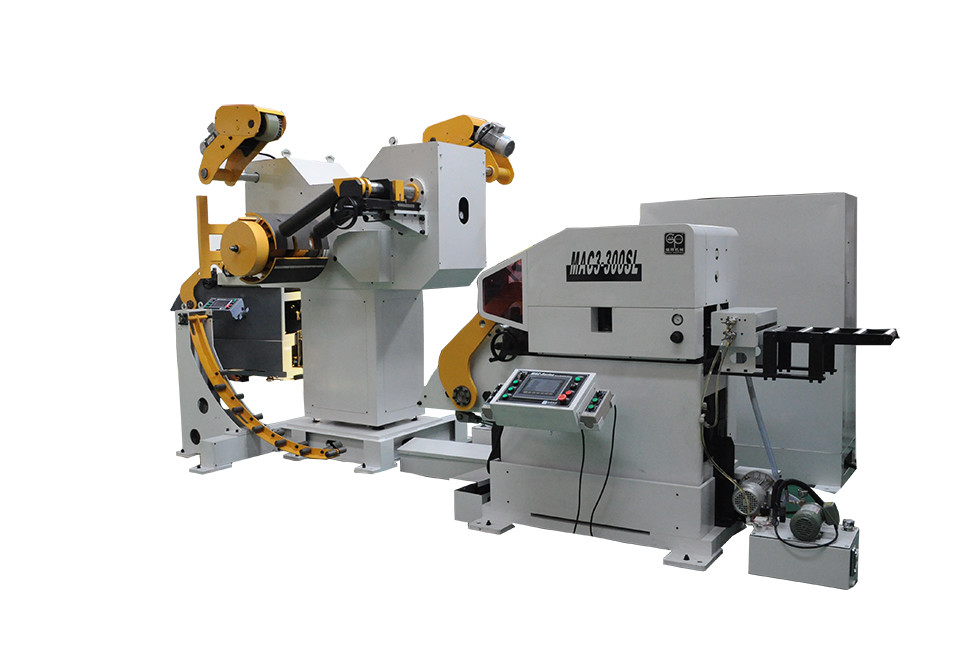

Metal Forming Stamping Upper 4 Down 3 Work Roll Decoiler Straightener Feeder Machine

Name: Metal Forming Stamping Upper 4 Down 3 Work Roll Decoiler Straightener Feeder Machine
Brand: RUIHUI
Price: 1 USD

Quality Metal Forming Stamping Upper 4 Down 3 Work Roll Decoiler Straightener Feeder Machine for sale

Brand Name : RUIHUI

Model Number : MAC4-1000

Certification : CE, ISO certification

Place of Origin : Guangdong, China (Mainland)

MOQ : 1 Set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 30 Sets Per Month

Delivery Time : 30 work days

Packaging Details : Wooden Box or Vacuum Packing

Material width : 70-1000mm

material thickness : 0.6-6.0mm

coil weight : 7000kg

work roll number : Upper 4 /down 3

Feed roll number : 1

Main Motor : AC11

Mandrel Expansion : hydraulic

Name : straightener feeder

keyword : uncoiler equipment

color : customized

Contact Now

Metal Forming Stamping Upper 4 Down 3 Work Roll Decoiler Straightener Feeder Machine

Innovative mechanical structure minimizes the space required for the entire machine. It adopts man-machine interface, which is easy to operate and convenient for feeding.

The correction roller is made of high-alloy bearing steel and undergoes a series of heat treatments (tempering + high frequency treatment + hard chrome layer), strictly guaranteeing the rigidity of the correcting roller and correcting the surface finish of the roller to ensure the surface properties of the material being corrected during the correction process. The surface hardness of the correcting roller is up to HRC60, ensuring high precision and high wear resistance.
Board width: 0-400mm Board thickness: 0.6mm~6.0mm

Dongguan Ruihui Feeder RNC-600HB
1. Through CCS (Computer Control Servo System), high-precision numerical control is realized in the past.

2. It is easy to perform fast and accurate operations.

3. For the design of strong thick materials, it shows excellent quality in the application of thick plates.

Material width: 20-600mm Thickness: 0.5~4.5 (6.0)
Metal Forming Stamping Upper 4 Down 3 Work Roll Decoiler Straightener Feeder Machine
Specification:

Model	MAC2-400	MAC2-500	MAC2-600		MAC2-800
Stock Width(mm)	50-400	50-500	50-600		50-800
Stock Thickness(mm)	0.3~3.2	0.3-3.2	0.3-3.2		-3.2
Max.Coil Weight(kg)	3000	3000	3000	5000	5000	7000
Max.Coil O.D.(mm)	1200	1200	1200
Coil I.D.(mm)	8	8	508		508
Feed Length(mm)	~500*	~500*	~500*		~500*
Max. Line Speed(m/min)	16-24	16-24	16-24		16-24
Work Roll Number(pieces)	upper 6 lower 5	upper 6 lower 5	upper 6 lower 5		upper 6 lower 5
Feed Roll Number(set)	1	1	1		1
Main Motor(kw)	AC2.9	AC2.9	AC4.4		AC4.4
Mandrel Expansion	hydraulic	hydraulic	hydraulic		hydraulic
Reel Motor(kw)	1.5	1.5	1.5	2.2	2.2	3.7
Power(V)	3 Phase 220V/380V/50HZ
Operating Air(Mpa)	0.49	0.49	0.49		0.49

Straigtening performance:

tock Thicknees (mm)	Stock Width (mm)
0.3	400	500	600	800
0.4
0.6
0.8
1.0
1.2
1.4
1.6			470	470
1.8			400	400
2.0			360	360
2.3	300	300	300	300
2.5	230	230	230	230
2.8	150	150	150	150
3.2	110	110	110	110

*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi
Metal Forming Stamping Upper 4 Down 3 Work Roll Decoiler Straightener Feeder Machine

1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.
2. After-Sales service:We have an efficient team to meet 24*7 all day service.
3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.
4. Engineers can provide service machinery overseas.
